Vetro 509

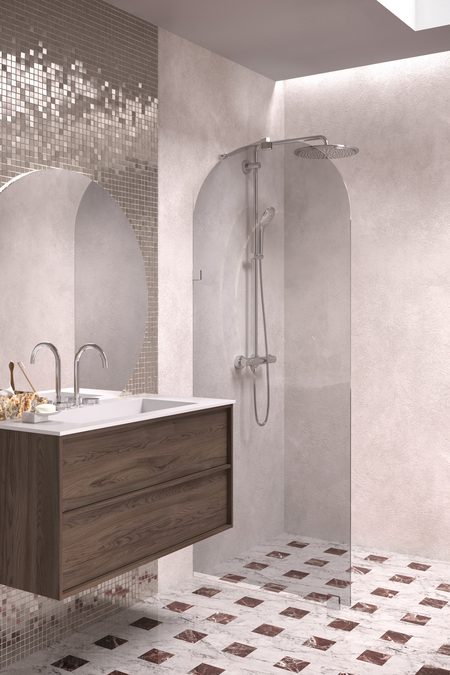

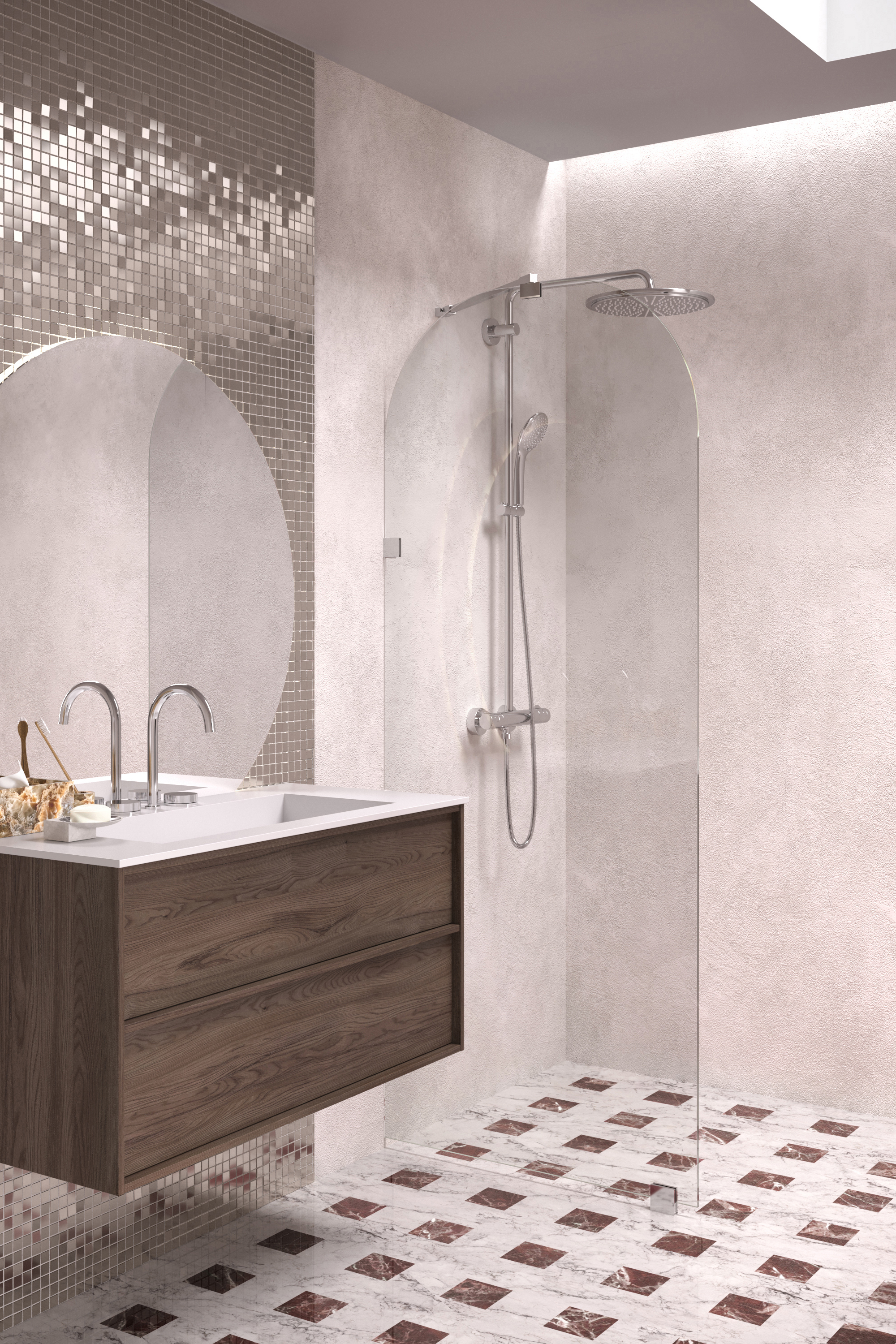

Arched fixed shower screen
The fixed shower screen protects the space and the fixtures located next to the shower from splashing water. The fixed shower screen is sturdy and can be efficiently used for protection from water.
The shower screen is attached by its sides to the building wall by means of wall mountedfixtures. The panel is supported from the upper edge by the braces installed into the corner and from the bottom edge by means of the fixture glued to the floor, so that a 25 mm gap remains between the panel and the floor. Between the panel and the floor may be installed a seal (standard part) , so that water will not be able to flow under the panel. Installation guide
20 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are Chrome plated, Brushed, Brass, White (RAL 9016), Black (RAL 9005), Sand (RAL 1019), Mocha (RAL 8025) and Cocoa (RAL 8019). Chrome and Brass are shiny surface treatments, brushed fittings are brushed matte, White, Black, Sand, Mocha and Cocoa fittings are painted.
The product is manufactured of 8 mm thick tempered safety panel (EN 12150). Glassoptions are Transparent, grey, brown, satin, super bright and black. One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. The black glass is slightly see through in heavy light and almost nontransparent if the space is darker. The super bright glasses are manufactured with the iron removed, thus removing most of the green tint that glasses naturally have. Please note, that productpictures of satin glass use super bright satin of which an offer can be calculated via our customer srevice. All glasses can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The total width of the selected product is 670mm.:
The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying towels or as a rail for a shower curtain.An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Vetro 509
Product code
509-21-0
Price
0.00 €
2
Vetro 509 Fixed screen
Chrome plated/Transparent/A=670 x 1000
Product code
509 21 0000
Price
970.00 €
3
TOTAL
Product code
Price
970.00 €
The total width of the selected product is 670mm.:
| EAN: |
|---|
