Fenic 366 (315x315)

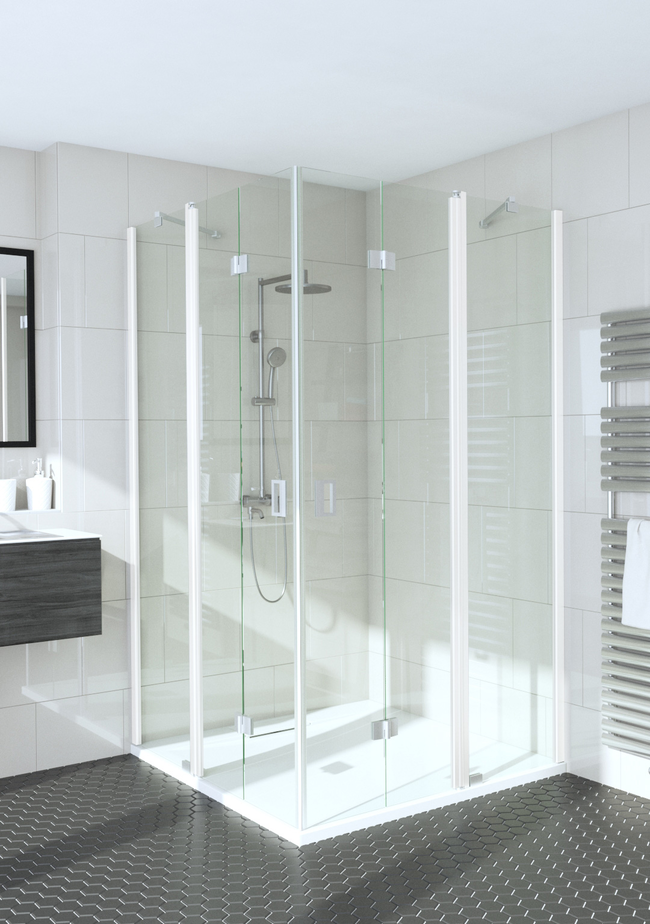

Shower enclosure with folding doors one of which have fixed parts

The shower enclosure consists of two fixed walls, into which have been hinged folding doors. The product is well-suited for a shower corner where the doors may not necessarily have the space to properly open outwards and where there is also a cramped space in the inside of the shower area. The folding door does not require space for opening outside the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space in the direction of the wall of the building. Fixed wall can be dimensioned according to the fixtures (e.g. the mixer) inside the shower area so that the doors do not hit the fixtures when being folded. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A magnet seal keeps the door tightly closed during showering.

Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the brace bars installed in the corners as well as from the bottom edge by the fitting glued to the floor. There is a gap of 25 mm between the panel of the fixed walls and the floor. seal (standard part)s may be installed between the panel and the Floor, in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 20mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure fixed screen (A)

X

Shower enclosure folding door (B)

X

Shower enclosure fixed screen (C)

X

Shower enclosure folding door (D)

X

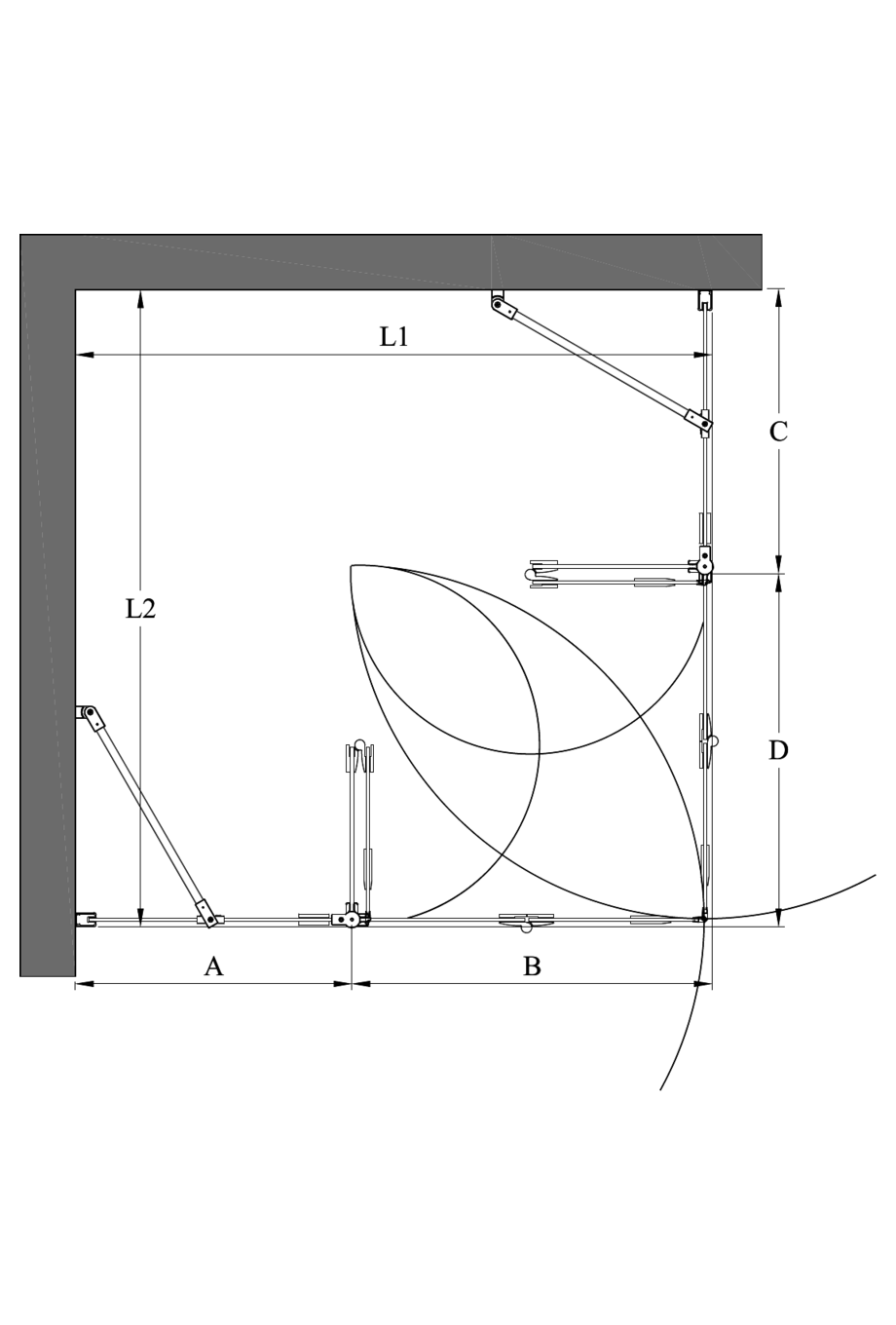

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 953mm - 973mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Product

Product code

Price

1

Fenic 366 (315x315)

Product code

366-61-5151

Price

0.00 €

2

Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/A=417 x 2000

Product code

314 61 0042

Price

257.50 €

3

Fenic 315 Shower enclosure folding door
White painted/Transparent/B=536 x 2000

Product code

315 61 1051

Price

367.50 €

4

Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/C=417 x 2000

Product code

314 61 0042

Price

257.50 €

5

Fenic 315 Shower enclosure folding door
White painted/Transparent/D=536 x 2000

Product code

315 61 1051

Price

367.50 €

6

Magnet seal pair

Product code

929 6L 0001

Price

40.00 €

7

TOTAL

Product code

Price

1290.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 953mm - 973mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN:
