Bläk 829 New York

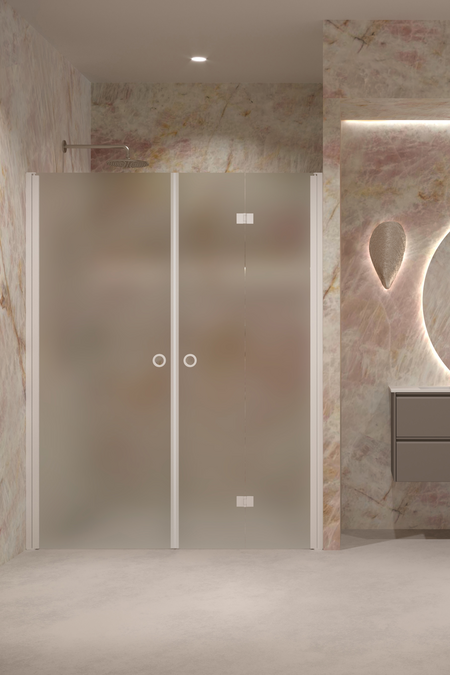

Alcove fitting with a hinged and a folding door

Alcove fitting configuration consists of a hinged door and a folding door. The product is well-suited for a shower enclosure where the doors may not have the space to properly open outward on both sides. A folding door does not require space for opening from outside the shower area; instead, the door folds into the shower area with the door panel folding into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building.

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

The door panels are mounted to building wall using wall mounting profiles on each side of the enclosure space. Bottom seals and step profiles can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Icon

19 Working days

Icon

20 year warranty

The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mountedprofiles have the total of 30mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

Product size

Alcove folding door (A)

X

Alcove folding door (B)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1099mm
- At its widest: 1129mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Product

Product code

Price

1

Bläk 829 New York

Product code

829-61-11

Price

0.00 €

2

Bläk 712 Alcove folding door
White painted/Transparent/A=407 x 1950

Product code

712 61 0039

Price

409.00 €

3

Blak 713 Alcove folding door
White painted/Transparent/B=692 x 1950

Product code

713 61 0070

Price

514.00 €

4

Magnet seal pair

Product code

705 RL 0001

Price

42.00 €

5

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-193.00 €

6

TOTAL

Product code

Price

772.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1099mm
- At its widest: 1129mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
