Classic C61 Special Batch
Sauna glass door

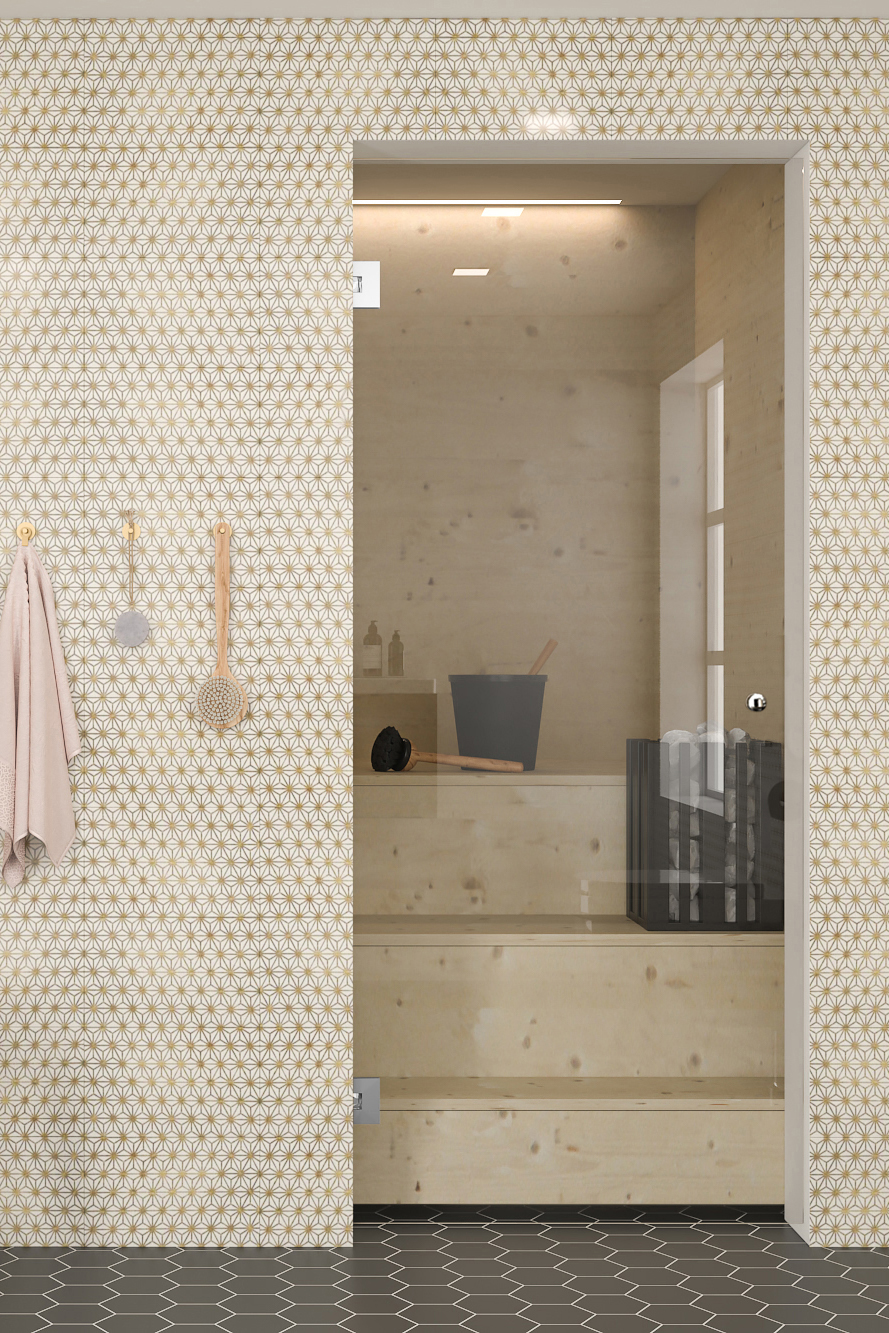

This glass door is well suitable both as a sauna door as well as a door for other spaces in the home. The door is unframed with hinges mounted directly to the building wall.
The hinges has a turning range of 90 degrees in both directions and are equipped with adjustable centring that aims to return the door into its opened and closed positions.
The door is mounted with hinges screwed directly to the building wall and by fastening the hinges tightly to the glass. Please note that the hinges should be re-tightened after approximately one week of use, due to the heat affecting the placing of the hinge the few first times of use. The re-tightening is done by tightening the hex-screw on the glass-side as tight as possible. The responsibility of doing the tightening is always the end users.
10 Working days
5 year warranty
Door hinges and the knobhandles are manufactured of brass alloy. Surface treatment options are chrome plated and black painted.
The product is manufactured of 8mm thick tempered safety panel (EN 12150). Transparent and Grey are smooth surfaced and transparent panels
The doors are always standard sized, with options for 700, 800 and 900 mm wide gaps. All glasses are by default 1885 mm high, and thus best suitable for sauna openings that are approximately 2000 mm high, when a 110 mm high air gap is left below the door. If used in dry space units, the most optimal gap height is 1910 mm, when there's a 20 mm turning-range below the door. Both in sauna units and in dry space solutions a gap of 5 mm are recommended above the door.
Product size
.:
The product is equipped with a round knob handle manufactured from brass. The handle color matches the chosen profile color.
Product
Product code
Price
1
Classic C61 Special Batch
Product code
C61-21-7777
Price
0.00 €
2
Classic K41 Glass door
Chrome plated/Transparent=700 x 2000
Product code
K41 21 0070
Price
310.00 €
3
TOTAL
Product code
Price
310.00 €
.:
