Inne M19 New York
Jambed door with upper window
Inne Door with upper window consists of a door with an upper window above it. The door opens 180 degrees in one direction. The product has sturdy door jambs made of aluminium and a door leaf and an upper window made of tempered glass. The product comes with frames, hinges, a door leaf, an upper window, a handle, a lock cassette and a lock counterpart.

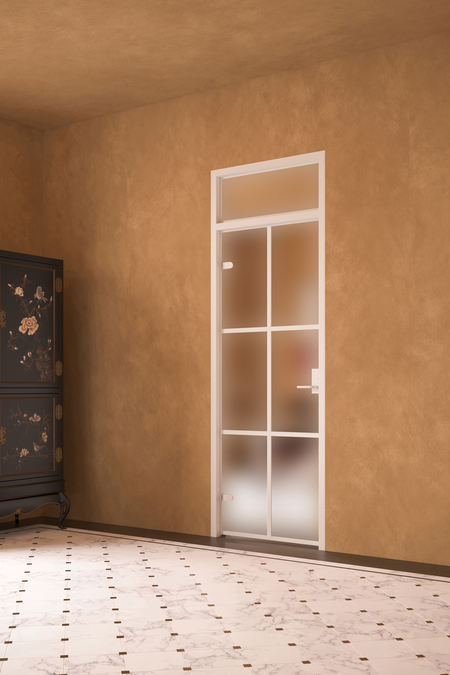

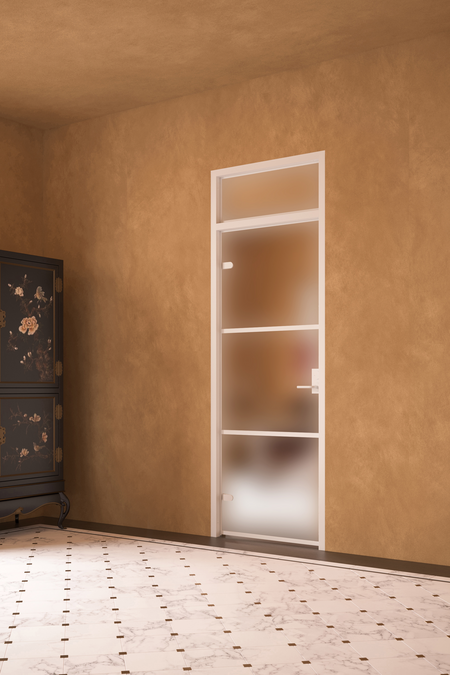

In the New York, Tokyo and Paris models, the door leaves are framed. The Tokyo and Paris models are also equipped with aluminum grids glued to the glass.
Installation guide
Installation services are available in Finland capital (Helsinki, Espoo, Vantaa, Kauniainen, Porvoo, Sipoo, Kirkkonummi, Nurmijärvi, Kerava, Järvenpää, Riihimäki, Pornainen, Hyvinkää, Tuusula), Tampere (Tampere, Nokia, Kangasala, Lempäälä ja Pirkkala), Häneemlinna and Lahti (Lahti, Mäntsälä, Orimattila) regions. Service is carried out by manufacturers professional mechanic. When product is ordered with installation service, transport company delivers the product to customer site. When the product has arrived, mechanic will phone customer and agree the exact installation date and time. Installation is done to clean and installation ready surfaces. Installation work includes besides installation of the product also taking away the installation garbage. If you are unsure about the measures of the product (for example in case of custom sized products), you can order a measurement visit on-site done by the mechanic. In this case the mechanic will fill-in the final measures of the product to the system and the responsibility that measures are correct is carried by the manufacturer.
17 Working days
20 year warranty
Product jambs and depending on the model, possible door leaf frames and grids are manufactured of aluminium profiles. Hinges and other fittings are manufactured of brass alloy. Aluminium profile and fitting surfaces are powder painted in White (RAL 9016), Black (RAL 9005), Sand (RAL 1019), Mocha (RAL 8025) or Cocoa (RAL 8019). Please note, that seals and technical parts are always White (white and sand), or black (black, mocha and cocoa).
The product is manufactured of 8 mm thick tempered safety panel (EN 12150).
There's plenty of glass options available. Transparent, grey, brown and mirage. Satinglasses are available in different hues (satin, brown satin and grey satin).
One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The mirage glasses transparency depends of lighting in the space, when backside is lit the glass seems transparent, when the backside is dimmed or dark, the mirroring effect kicks in.

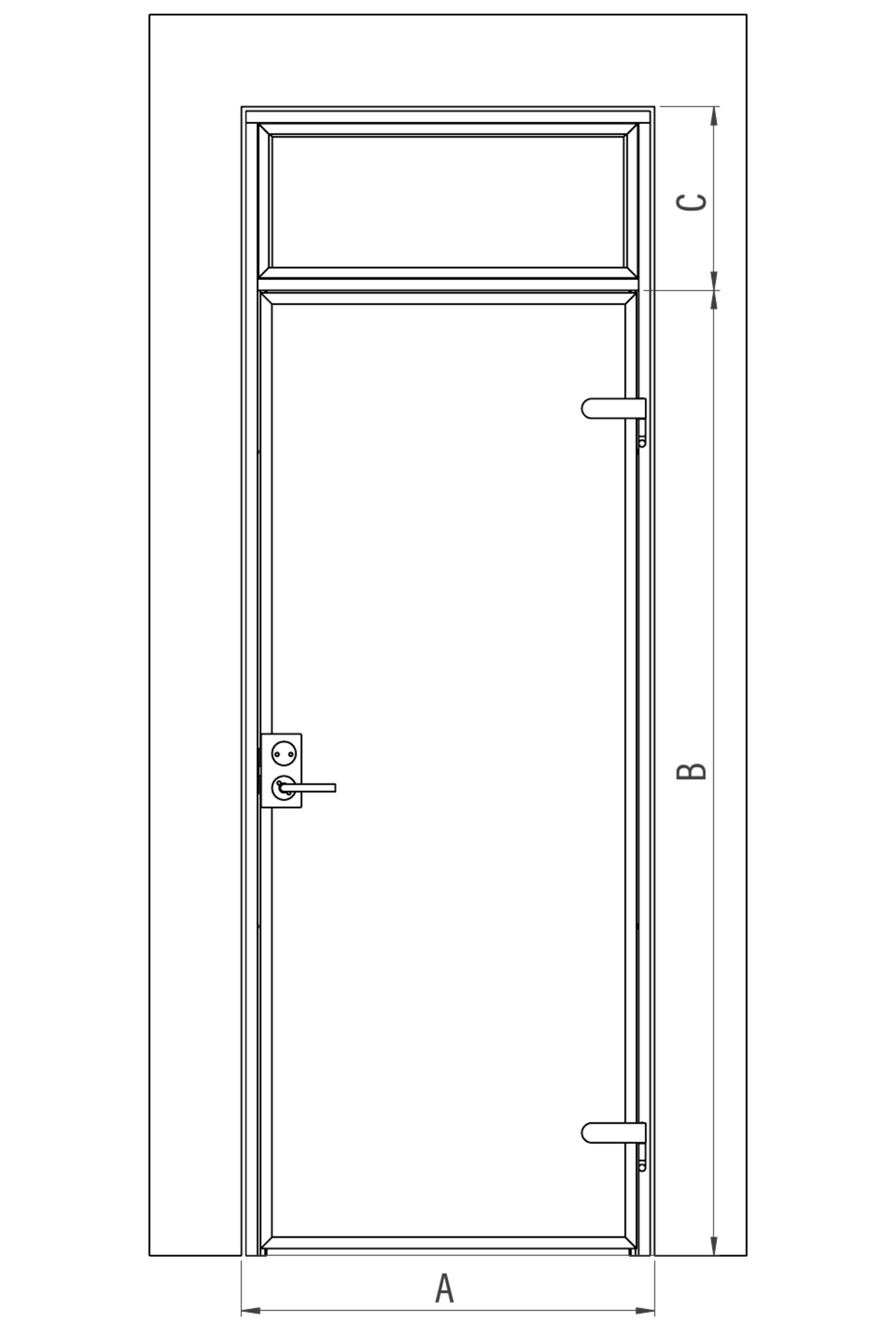

The product is manufactured according to measures. When ordering, please state the width and height of the installation opening, where A is width, B is height of door and C is height of upperwindow. A 20 mm total mounting space is left between the product frames and the specified mounting opening on the sides, and 10 mm on top. The free access opening is 110 mm smaller than the width of the specified mounting opening, when both doors are opened. The depth of the frame is 92mm.
Product size
The selected product can be installed into the opening the total width of which is 800mm and the total length 2800mm.:
The door can be equipped with a toilet thumbturn knob (optional). The surface color of the knob is black. The door can also be equipped with other thumbturns for the Nordic market.
The product is provided with a lock cassette, a handle and a cover plate for covering the thumbturn installation hole. Thumbturn, which is commonly used in toilet doors is an additional equipment. The handle can be replaced with other handles commonly available in the Scandinavian market.
The hinges of the door have handedness, which should be chosen when ordering. When facing the door from the space into which it opens, handedness determines on which side of the door the hinges are.
Product
Product code
Price
1
Inne M19 New York
Product code
M19-61-00
Price
0.00 €
2
Door
White/Transparent=800 x 800
Product code
C54 61 0000
Price
0.00 €
3
Upper Window
White/Transparent=800 x 2000
Product code
C55 61 0000
Price
0.00 €
4
Inne jambs
White/Transparent=800 x 2800
Product code
C53 61 0000
Price
0.00 €
5
Maintenance guide
=
Product code
059 RL MMMM
Price
0.00 €
6
Right
Product code
C0R RL 0000
Price
0.00 €
7
TOTAL
Product code
Price
0.00 €
The selected product can be installed into the opening the total width of which is 800mm and the total length 2800mm.:
