Classic 411

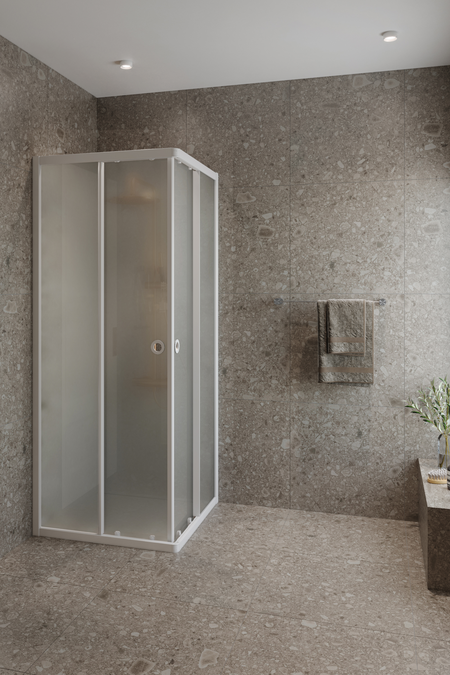

Shower enclosure with fixed walls and sliding doors

The shower enclosure consists of two fixed walls and two sliding doors. The product is well-suited for a shower corner on the outside of which are fixtures on both sides and where the doors have no space to open to the outside or inside. The doors move behind the fixed walls, so that they would not require space for opening. The fixed walls and the doorway can be dimensioned so that the fixed walls protect the fixtures and the doorway occupies the width of the available space space. The doors slide behind the fixed parts supported by the bearing wheels installed into the top edge of the door. The bottom parts of the doors move in the guide groove of the lower slide rail. A magnet seal keeps the door tightly closed during showering. Doors are equipped with long profile handles of the height of the entire panel.

The shower enclosure is attached to the wall of the building from the sides by means of wall mountedprofiles. The product can be installed off the floor with the help of an adjustment leg, in order to allow water to flow under the slide rail. Alternatively, the flow of water can be prevented by installing a seal (standard part) under the slide rail. The adjustment leg and the seal (standard part) are standard equipment.Installation guide

Icon

19 Working days

Icon

5 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) surface treating option is a powder painted coating. The glossy option is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels Chinchilla and satin panel are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 20mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected. Please note that the mounting opening for Glisse products should be 25mm higher than the product itself.

Product size

L1

X

L2

X

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 688mm - 708mm
- Side L2 : 688mm - 708mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Classic 411

Product code

411-61-11

Price

0.00 €

2

Classic 411 L1
White painted/Transparent=688 x 1947

Product code

402 61 0068

Price

395.00 €

3

Classic 411 L2
White painted/Transparent=688 x 1947

Product code

403 61 0068

Price

395.00 €

4

TOTAL

Product code

Price

790.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 688mm - 708mm
- Side L2 : 688mm - 708mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN:
