Bläk 732 New York
Hinged door
The swinging shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.
The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.
The wall mounting profile is screwed in to the building wall. The door panel is attached to the wall mounting profile with self-drilling screws. A step profile and a bottom seal can be installed under the door panel to improve water retention. Installation guide
10 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

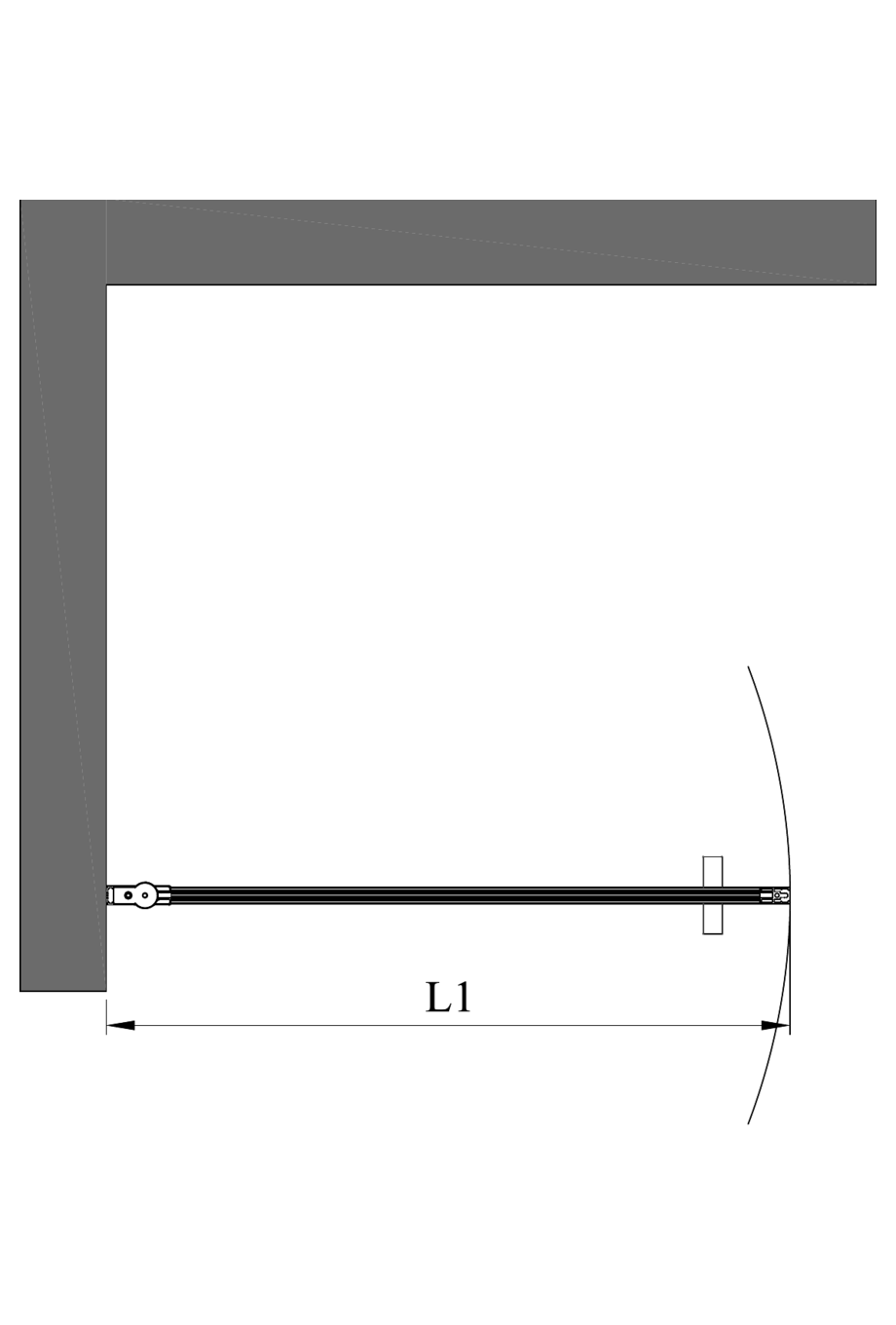

Product size
The total width of the selected product is:
- At its narrowest: 395mm
- At its widest: 410mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Bläk 732 New York
Product code
732-61-1
Price
0.00 €
2
Bläk 712 Hinged shower door
White painted/Transparent/L1=395 x 1950
Product code
712 61 0039
Price
409.00 €
3
Side seal
Product code
720 RL 0001
Price
0.00 €
4
BLÄK SERIES 01.08-30.11.2024 -20%
Product code
DISCOUNT
Price
-81.80 €
5
TOTAL
Product code
Price
327.20 €
The total width of the selected product is:
- At its narrowest: 395mm
- At its widest: 410mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
