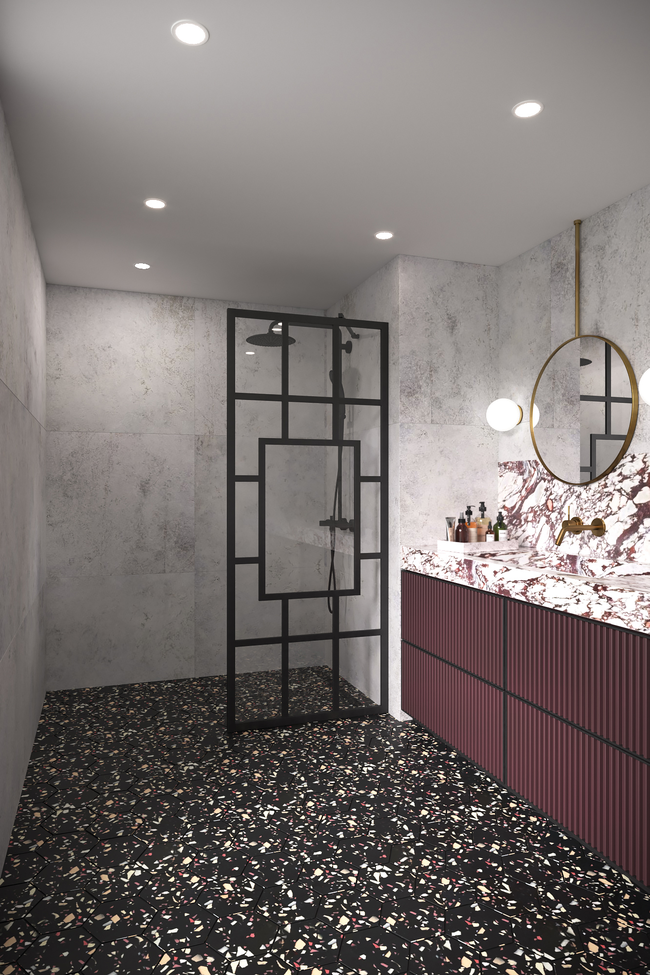

Bläk 800 Shanghai

Fixed shower screen

Fixed shower screen protects the space and the fixture next to the shower from splashing water. Fixed shower screen is sturdy and can be efficiently used for protection from water.

Shower screen is attached by its sides to the building wall with a wall mounting profile. The panel is supported from the upper edge by the braces installed into the corner. Between the panel and the floor a seal (standard part) may be installed, in order to prevent water from flowing under the panel. Installation guide

Icon

16 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mounted profiles have 7mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 40mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Fixed shower screen (L1)

X

The total width of the selected product is:
- At its narrowest: 497mm
- At its widest: 504mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying light towels or as a rail for a shower curtain with hoops. We recommend the long support bar instead of the short one, for added support if the fixed panel exceeds 850 mm in width, or if the panel is close to maximum height. The longer support bar should be mounted as close to the outer edge of the panel as possible.

Product

Product code

Price

1

Bläk 800 Shanghai

Product code

800-61-7

Price

0.00 €

2

Bläk 711 Fixed shower screen
White painted/Transparent/L1=497 x 1950

Product code

711 61 0049

Price

530.00 €

3

Shanghai-frame

Product code

741 RL 0007

Price

440.00 €

4

CAMPAIGN -20% 31.10.-31.12.2022

Product code

DISCOUNT

Price

-194.00 €

5

TOTAL

Product code

Price

776.00 €

The total width of the selected product is:
- At its narrowest: 497mm
- At its widest: 504mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:
