Fenic 341 (311+314)

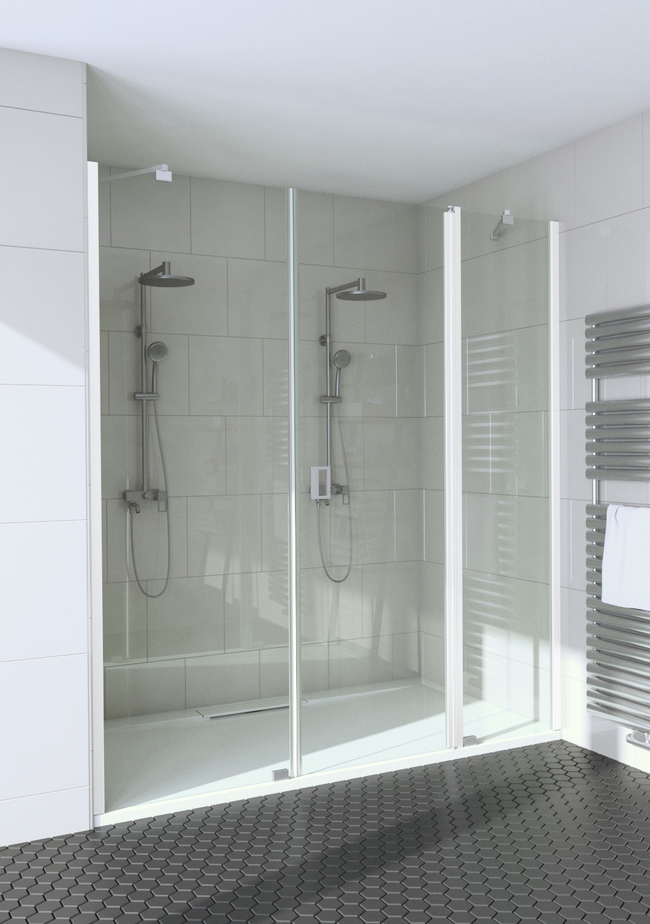

Alcove fitting with a fixed wall and hinged door which has a fixed part
The alcove fixture consists of two fixed walls, to one of which is hinged a hinged door. The product is well-suited for a shower enclosure which has fixtures located on both sides. Fixed walls can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixtures.
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the braces installed in the corners as well as from the bottom edge by the fixture glued to the floor. Between the panels of the fixed wall and the floor will be a 25mm high gap. A seal (standard part) may be installed between the panel and the floor, may be installed seal (standard part), so that water will not be able to flow under the panels. In the bottom edge of the door panel which restricts the flow of water. Installation guide
19 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 40mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.
Product size
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1136mm
- At its widest: 1176mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Fenic 341 (311+314)
Product code
341-61-545
Price
0.00 €
2
Fenic 311 Alcove fixed screen
White painted/Transparent/A=392 x 2000
Product code
311 61 0038
Price
290.00 €
3
Fenic 314 Alcove hinged door
White painted/Transparent/B=327 x 2000
Product code
314 61 1031
Price
257.50 €
4
Fenic 314/315 Alcove fixed screen
White painted/Transparent/C=417 x 2000
Product code
314 61 0042
Price
257.50 €
5
Magnet seal pair
Product code
929 6L 0004
Price
40.00 €
6
TOTAL
Product code
Price
845.00 €
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1136mm
- At its widest: 1176mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
