Forma 322

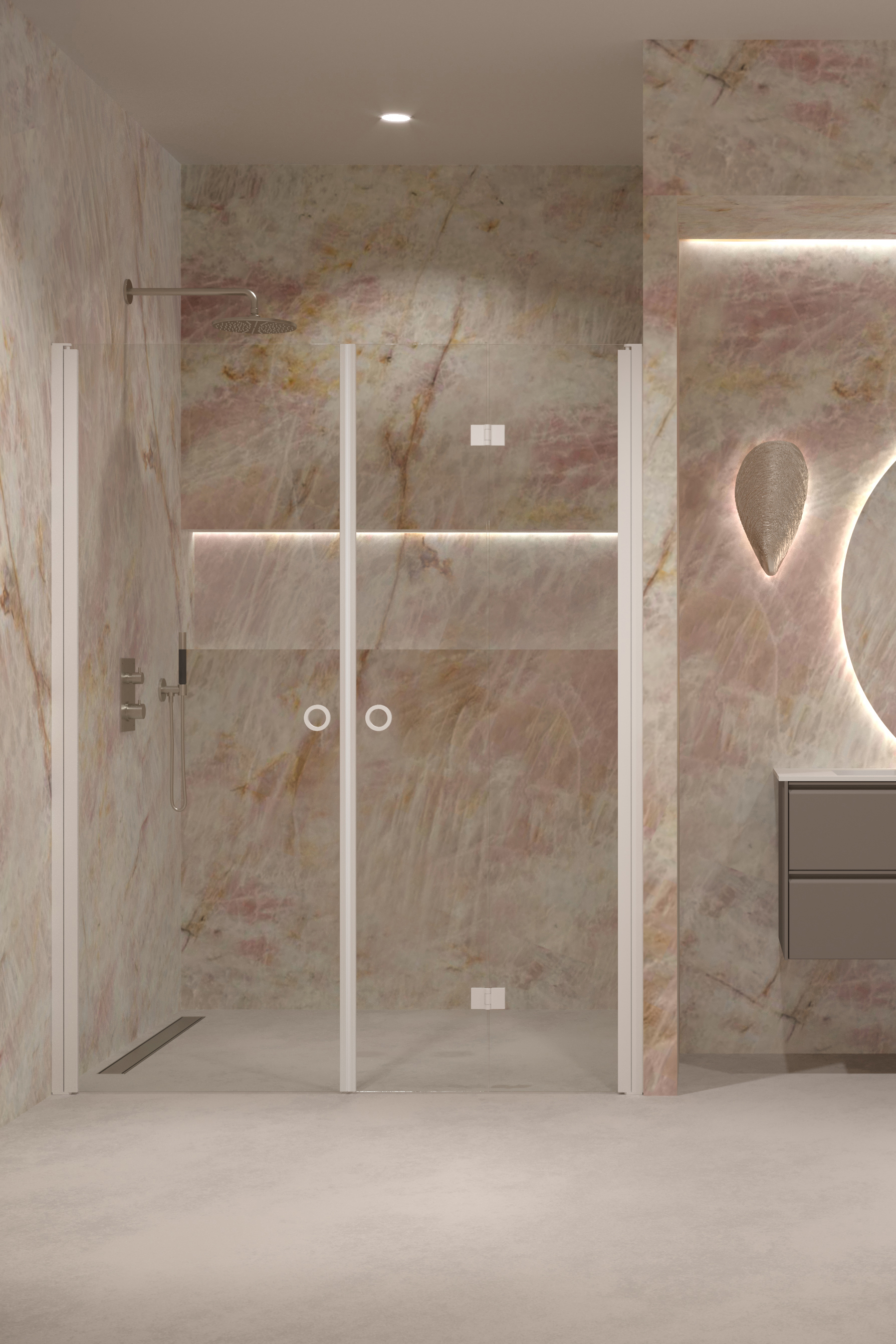

Alcove fitting with a hinged and a folding door

Alcove fitting configuration consists of a hinged door and a folding door. The product is well-suited for a shower enclosure where the doors may not have the space to properly open outward on both sides. A folding door does not require space for opening from outside the shower area; instead, the door folds into the shower area with the door panel folding into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet seals keep door tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mountedprofiles have the total of 15mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

Product size

Shower enclosure hinged door (A)

X

Shower enclosure folding door (B)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 994mm
- At its widest: 1009mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Please select handle model:

Product

Product code

Price

1

Forma 322

Product code

322-61-11

Price

0.00 €

2

Forma 302 Shower enclosure hinged door
White painted/Transparent/A=397 x 2025

Product code

302 61 0038

Price

290.00 €

3

Forma 303 Shower enclosure folding door
White painted/Transparent/B=597 x 2025

Product code

303 61 0058

Price

440.00 €

4

Magnet seal pair

Product code

F06 6L 0001

Price

20.00 €

5

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

60.00 €

6

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

60.00 €

7

Forma campaign 15.1.-14.4.2024 -20%

Product code

DISCOUNT

Price

-174.00 €

8

TOTAL

Product code

Price

696.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 994mm
- At its widest: 1009mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN:
