Vetro 527
Hinged shower door for alcove

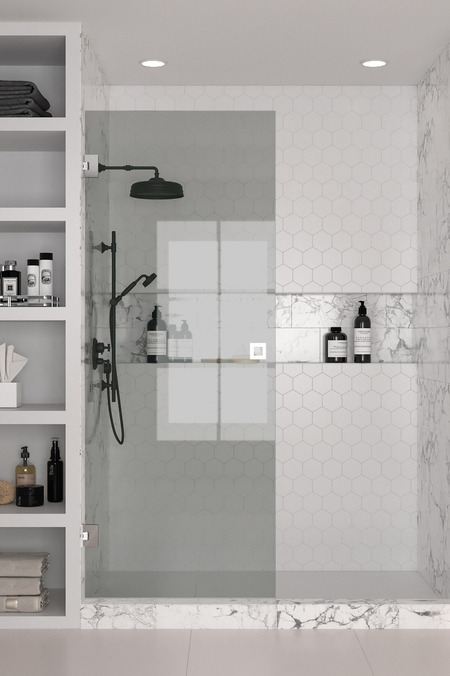

The hinged door protects the space and the fixture next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.
The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.
The hinges of the shower screen are mounted directly to the building wall. The installation height is freely selectable. By installing the product close to the floor and mounting a floor seal along the bottom edge of the panel the flow of water can be restricted. Installation guide
19 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The selected product can be installed into the opening the total width of which is 385mm and the total length 2010mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. The handedness can be chosen when mounting the product.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Please select handle model:
Product
Product code
Price
1
Vetro 527
Product code
527-21-4
Price
0.00 €
2
Vetro 512 Hinged shower door
Chrome plated/Transparent/L1=385 x 2010
Product code
512 21 0038
Price
430.00 €
3
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
4
TOTAL
Product code
Price
457.00 €
The selected product can be installed into the opening the total width of which is 385mm and the total length 2010mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. The handedness can be chosen when mounting the product.:
