Double sliding doors with soft closing mechanism
The sliding double door glass wall consists of two sliding door panels and a sliding mechanism mounted to the building wall above the doorway. Sliding door fixture takes up very little space in the room, a quality sliding mechanism and a floor guide fitting provides a smooth and safe door movement. The doors are equipped with soft closing mechanism which cushions the closing and gently pulls the door into position.
The sliding rail profile is fixed to the wall(ceiling). The sliding mechanism is affixed to the top of the door panel before being mounted on the sliding profile. A door guide is installed on the floor. The sliding rail profile is covered from the front and sides with cover plates.
26 Working days
5 year warranty
The black (RAL 9005) option is painted through powder coating, and the grey option - through anodized coatings.
The product is manufactured of 8mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
Glass wall is manufactured according to custom dimensions.

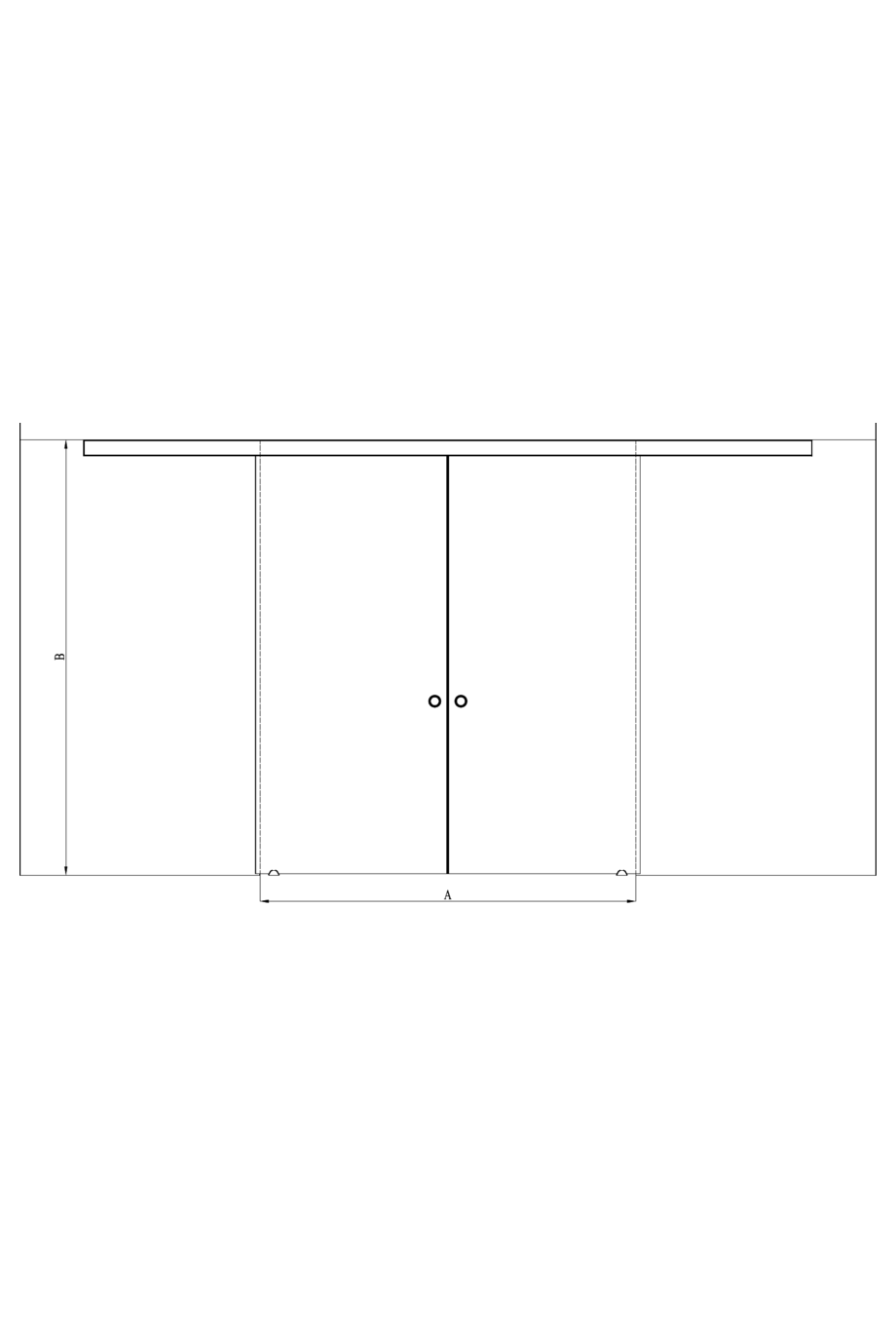

The round handle is manufactured from brushed brass alloy. The polished hole handle consists of a polished edge round cutout in the door glass. Handle height is 0.5B (as per 2D drawing).
Vetro 615 Vetro 615 wall mounted
Grey anodized/Transparent=1300 x 2000
615 81 0000
