Forma 306

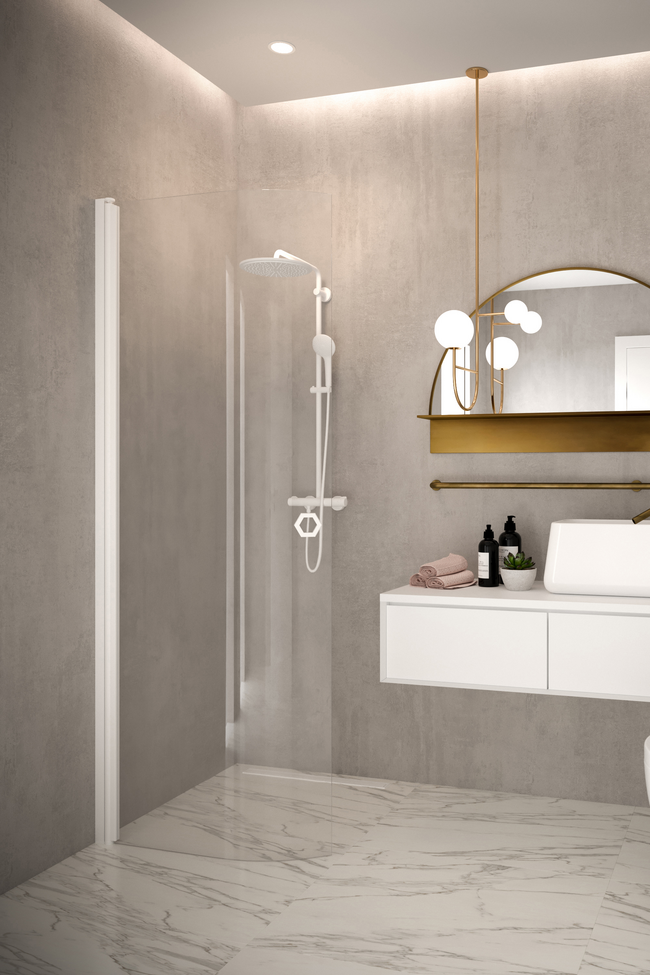

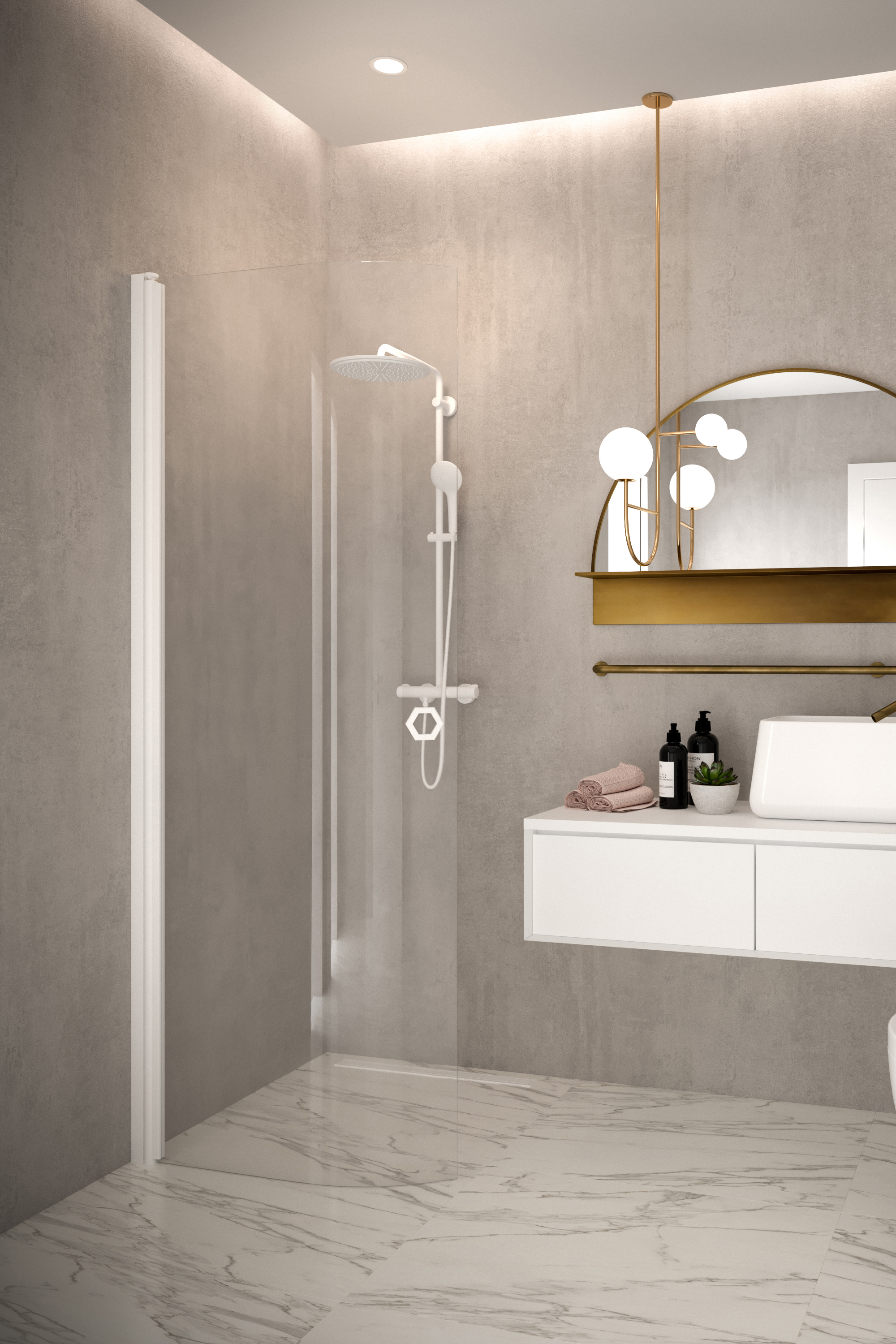

Curved hinged door

The hinged door protects the space and the fixture next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building. The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.

The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and installing a floor seal along the bottom edge of the panel the flow of water can be restricted.

Icon

16 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels.

The size of the shower screen is selected from the standard dimensions. The wall mountedprofile has 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Door (A)

X

The total width of the selected product is: - At its narrowest: 556mm - At its widest: 571mm Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls::


The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Please select handle model:

Product

Product code

Price

1

Forma 306

Product code

306-61-1

Price

400.00 €

2

Forma curved Door
White painted/Transparent/A=556 x 2025

Product code

306 61 0056

Price

0.00 €

3

Forma hexagon handle chrome Hexagonal handle chrome

Product code

F01 RL MMMM

Price

0.00 €

4

Midsummer Campaign 1.-3.7.2022

Product code

DISCOUNT

Price

-100.00 €

5

TOTAL

Product code

Price

300.00 €

The total width of the selected product is: - At its narrowest: 556mm - At its widest: 571mm Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls::

EAN:
