Fenic 314

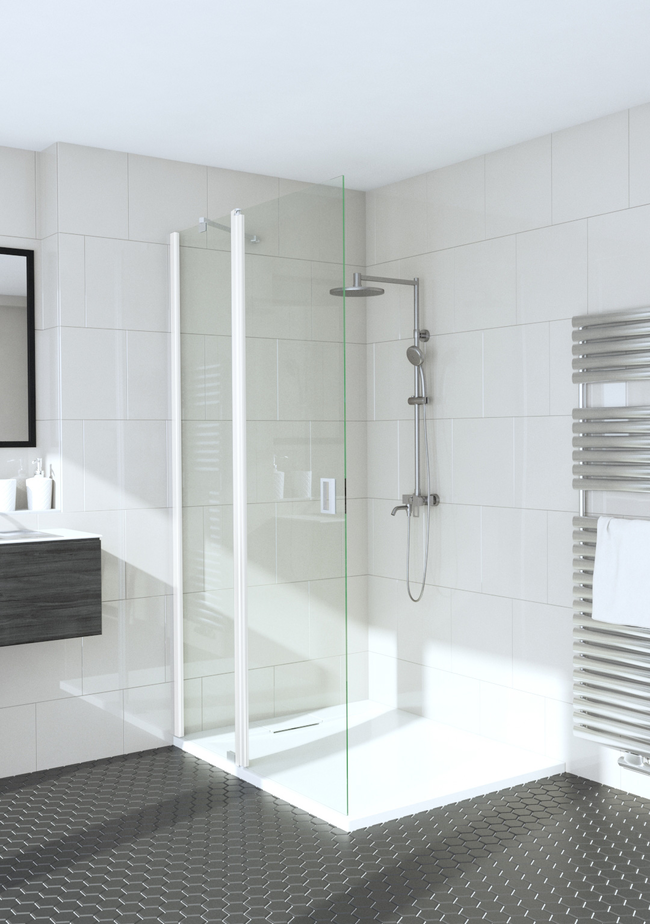

Hinged shower screen with a fixed part

The shower screen consisting of a fixed part and of a hinged part hinged to it the shower screen protects the space and the fixtures next to the shower from splashing water. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side. Due to the combination of the fixed and the hinged part the shower screen can be dimensioned also in a cramped space so that the hinged part does not hit other fixtures.

The hinged part of the shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the hinged part back to the open and closed positions.

The shower screen is attached by its sides to the building wall with a wall mountedprofile. The fixed wall is supported from the top edge with the brace installed in the corner and from the bottom corner with the fixture glued to the floor. There will be a 25mm gap between the panel of the fixed part and the floor. A seal (standard part) may be installed between the panel and the floor, to prevent water from being able to flow under the panel. A floor seal (standard part) can be installed along the bottom edge of the hinged part, which restricts the flow of water. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

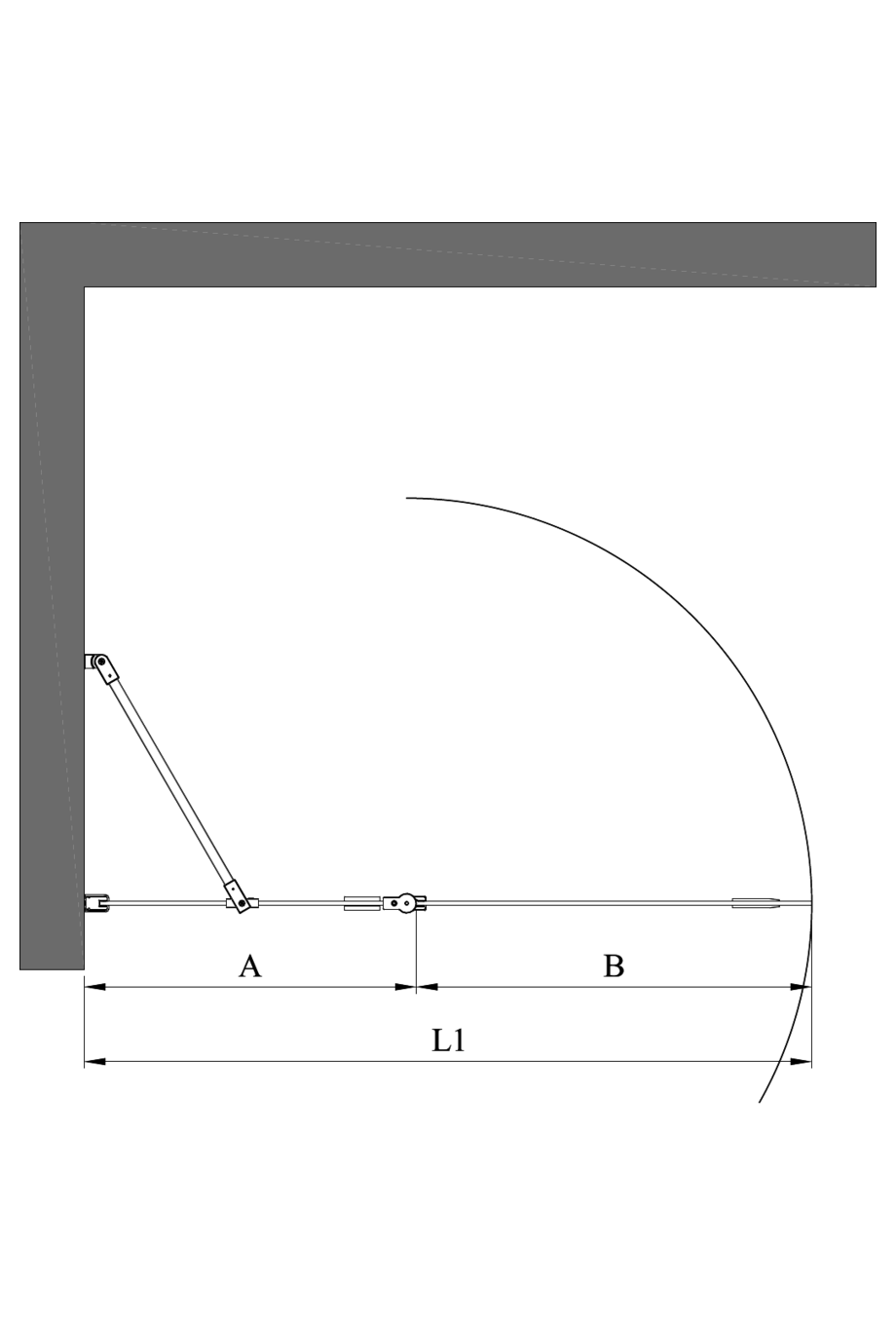

Product size

Shower screen fixed part (A)

X

Shower screen hinged part (B)

X

The total width of the selected product is:
- At its narrowest: 732mm
- At its widest: 752mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

The product is equipped with a handle that is manufactured from chromed brass and has a hole in it, which allows for an especially good grip on the handle.

Product

Product code

Price

1

Fenic 314

Product code

314-61-54

Price

0.00 €

2

Fenic 314/315 Shower screen fixed part
White painted/Transparent/A=417 x 2000

Product code

314 61 0042

Price

257.50 €

3

Fenic 314 Shower screen hinged part
White painted/Transparent/B=315 x 2000

Product code

314 61 1031

Price

257.50 €

4

TOTAL

Product code

Price

515.00 €

The total width of the selected product is:
- At its narrowest: 732mm
- At its widest: 752mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

EAN:
