Vetro 511

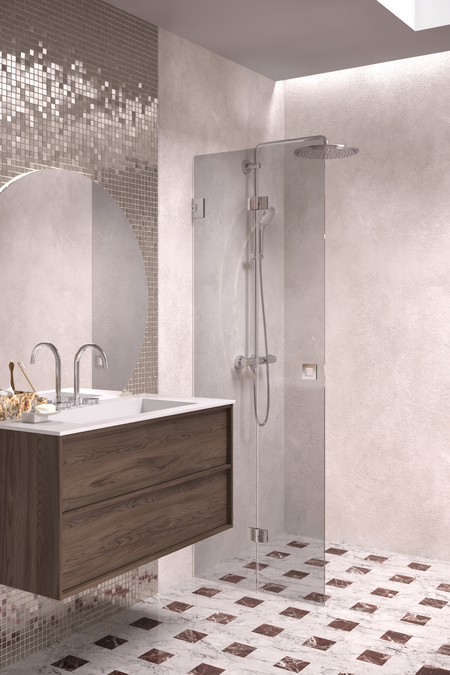

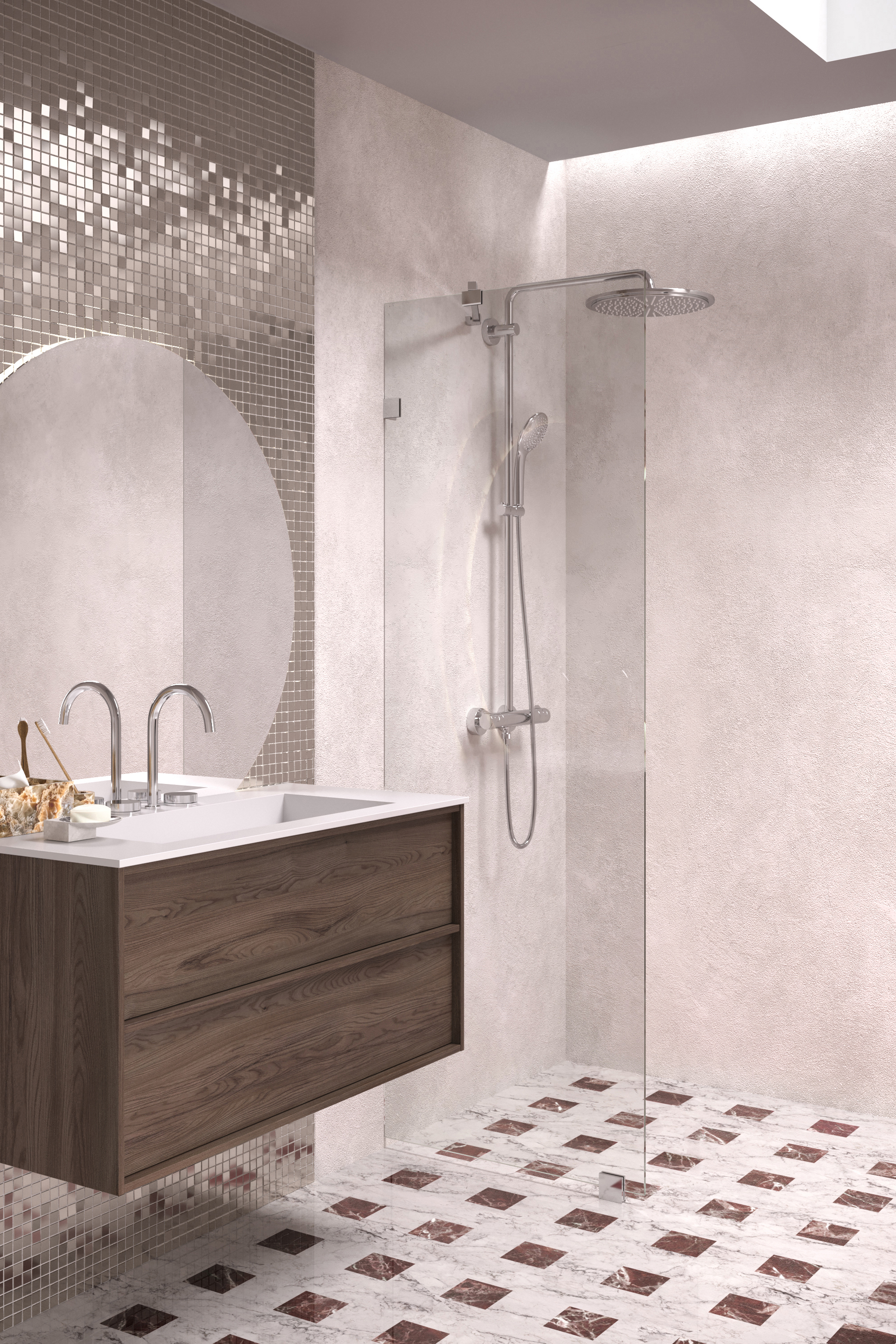

Fixed shower screen
The fixed shower screen protects the space and the fixtures located next to the shower from splashing water. The fixed shower screen is sturdy and can be efficiently used for protection from water.
The shower screen is attached by its sides to the building wall by means of wall mountedfixtures. The panel is supported from the upper edge by the braces installed into the corner and from the bottom edge by means of the fixture glued to the floor, so that a 25 mm gap remains between the panel and the floor. Between the panel and the floor may be installed a seal (standard part) , so that water will not be able to flow under the panel. Installation guide
10 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The total width of the selected product is 378mm.:
The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying towels or as a rail for a shower curtain.An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Vetro 511
Product code
511-21-4
Price
0.00 €
2
Vetro 511 Fixed screen
Chrome plated/Transparent/A=378 x 2000
Product code
511 21 0038
Price
451.00 €
3
TOTAL
Product code
Price
451.00 €
The total width of the selected product is 378mm.:
