Inne M06 New York
Glass doors with leverbolts

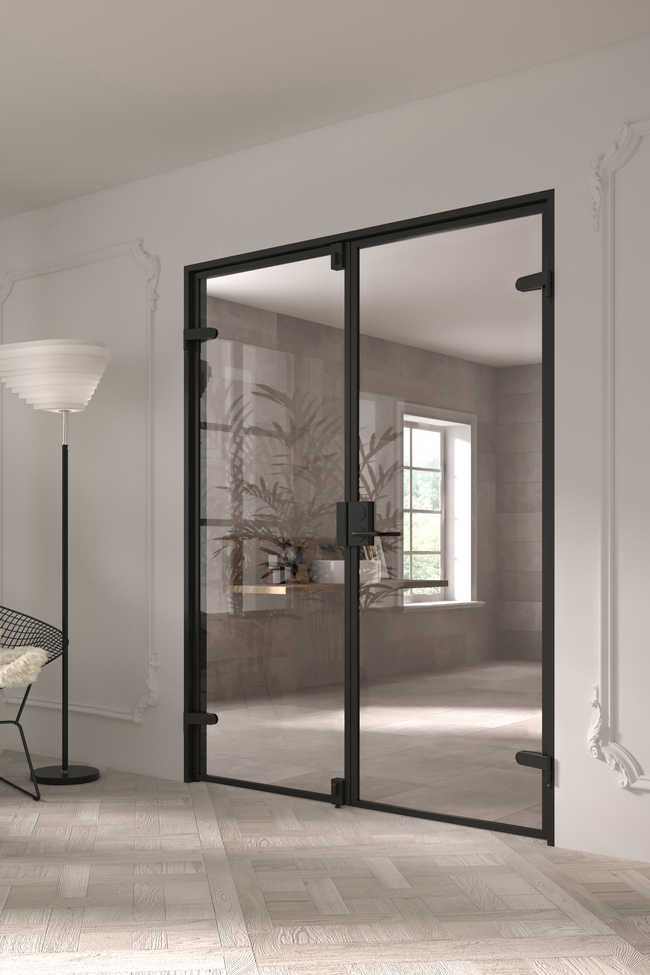

Inne Double doors with lever bolts consists of an active door and a passive door. Both doors open 180 degrees. The passive door can be locked into place with leverbolts to act as a fixed panel, that can be turned out of the way when needed. The product has sturdy door jambs made of aluminium and door leaves made of tempered glass. The product comes with frames, hinges, 2 door leaves, a handle, a lock cassette, a lock counterpart and top and bottom lever bolts.
In the Helsinki model, the door leaves are unframed, so the edges of the door leaves are exposed glass. In the New York, Tokyo and Paris models, the door leaves are framed. The Tokyo and Paris models are also equipped with aluminum grids glued to the glass.
The aluminum frame is assembled and attached to the walls of the building. The door leaves hinges are attached to the frame. The door leaves are attached to the hinges attached to the frame. Before mounting the lever bolts, pay attention that the bottom lever should be exchanged to the one with the rubber attached. Extra attention should also be payed to mounting the lever bolts with the lockable part in the opening direction. Mark the placement of the upper bolt in the frame, and drill a hole for locking the door into place. Installation guide
21 Working days
20 year warranty
Product jambs and depending on the model possible door leaf frames and grids are manufactured of aluminium profiles. Hinges and other fittings are manufactured of brass alloy. Aluminium profile and fitting surfaces are powder painted using black color (RAL 9005).
The product is manufactured of 8 mm thick tempered safety panel (EN 12150).
There's plenty of glass options available. Transparent, grey, brown, super bright, mirage, black and opalglass. Satinglasses are available in different hues (satin, brown satin, grey satin and super bright satin), there's also hue options for the reeded glasses (reeded, brown reeded and grey reeded).
One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The mirage glasses transparency depends of lighting in the space, when backside is lit the glass seems transparent, when the backside is dimmed or dark, the mirroring effect kicks in.
The black glass is also slightly see through in heavy light and almost nontransparent if the space is darker.
The super bright glasses are manufactured with the iron removed, thus removing most of the green tint that glasses naturally have.
Opal glass is a laminated glass, that is white tinted and nontransparent, but let's through most of the light.
The doors are manufactured according to measures. When ordering, please state the width and height of the installation opening, where A is passive door and B the active door. A 20 mm total mounting space is left between the product frames and the specified mounting opening. The free access opening is 110 mm smaller than the width of the specified mounting opening, when both doors are opened. The depth of the frame is 92mm.
Product size
The selected product can be installed into the opening the total width L1 of which is 1600mm and the total length L2 2000mm.:
The door can be equipped with a toilet thumbturn knob (optional). The surface color of the knob is black. The door can also be equipped with other thumbturns for the Nordic market.
The product is provided with a lock cassette, a handle and a cover plate for covering the thumbturn installation hole, as well as a counterpart for the lock. The thumbturn, which is commonly used in toilet doors is an additional equipment. The handle can be replaced with other handles commonly available in the Scandinavian market.
Product
Product code
Price
1
Inne M06 New York
Product code
M06-61-00
Price
0.00 €
2
Inne passive Passive door
White painted/Transparent/A=800 x 2000
Product code
C25 61 0000
Price
1038.00 €
3
Inne active Active door
White painted/Transparent/B=800 x 2000
Product code
C32 61 0000
Price
1038.00 €
4
Maintenance manual Maintenance guide
/=
Product code
059 RL MMMM
Price
0.00 €
5
Inne M05-M11 Inne jambs
White painted/=10 x 1600
Product code
C38 6L 0000
Price
0.00 €
6
TOTAL
Product code
Price
2076.00 €
The selected product can be installed into the opening the total width L1 of which is 1600mm and the total length L2 2000mm.:
